Precise test equipment for passive vehicle safety
Innovative test systems for maximum safety
At the Passive Safety Center, we offer state-of-the-art test systems for the comprehensive evaluation of passive safety components. Our test benches and devices stand for precision, reliability and versatility worldwide – setting industry standards.
Our products
Universal testing system
Drop tower
FMH Wizard
Mobile barriers
Low-speed crash system
Bumper pendulum
Static rollover test systems
Mobile climate box

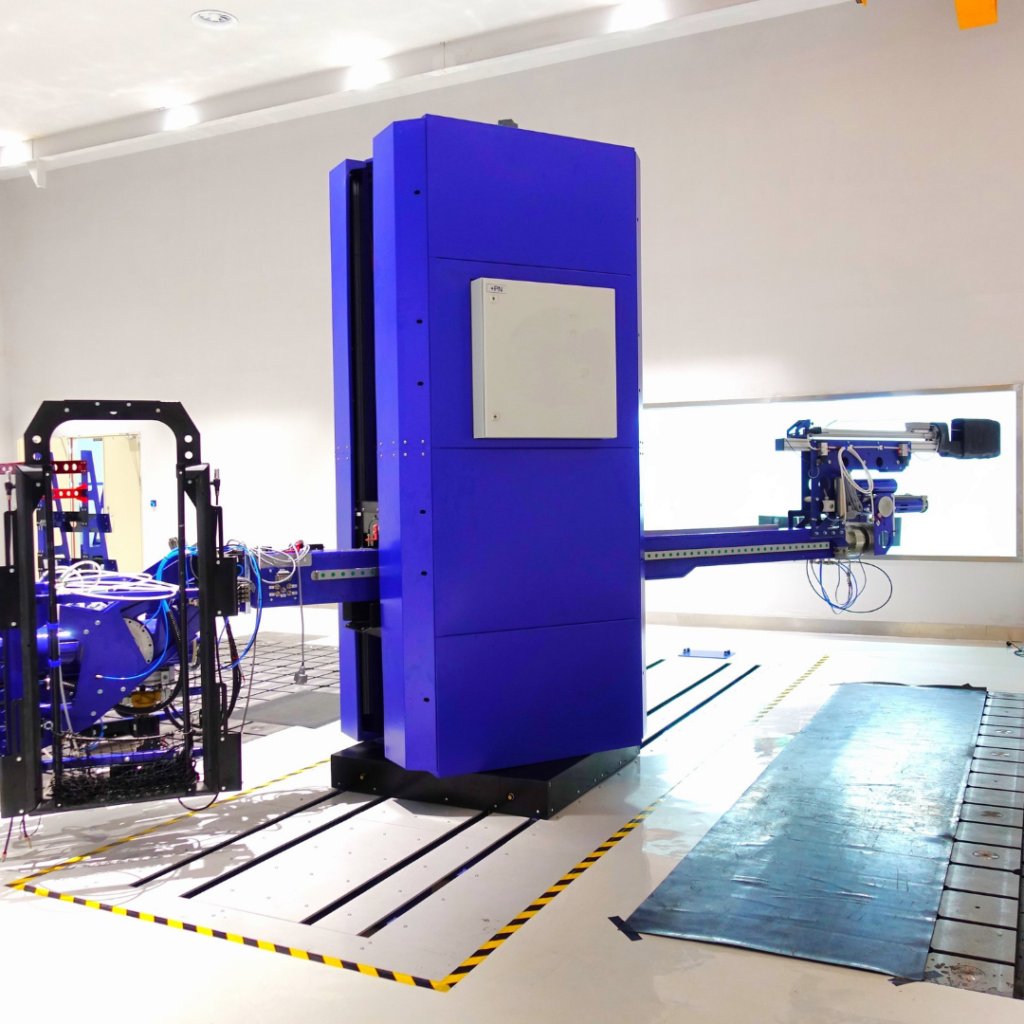

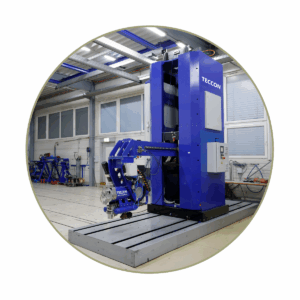

Universal testing system for impact tests
Our universal testing system is at the heart of numerous test projects. Thanks to its flexibility, robustness and many years of practical testing, it is suitable for a wide range of impact tests on vehicle components. Whether for manufacturers, suppliers or test laboratories – it delivers reliable and reproducible results.
Our test equipment at a glance

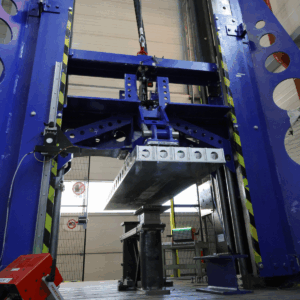

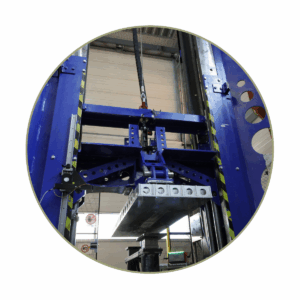

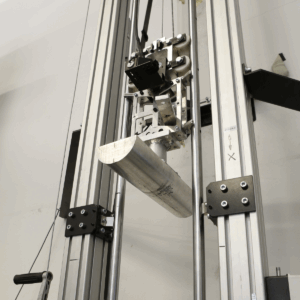

Drop tower
Our drop tower systems are versatile and efficient tools for testing materials and components in the field of passive safety. They are characterized by short set-up times, high accuracy and flexible application options. Tests can be carried out in different temperature ranges – heated or cooled components are also possible.
Areas of application:
- Component tests: bumpers, doors, headlights, battery modules, crash management systems
- Material validation and optimization of energy absorption
- Support for simulation and virtual development validation
- Shock tests (up to 300 g)
Our drop tower solutions therefore offer a cost-effective alternative to full vehicle crashes and allow maximum flexibility for a wide range of testing requirements.
Drop tower DT10
Drop tower DT200
Drop tower DT3000

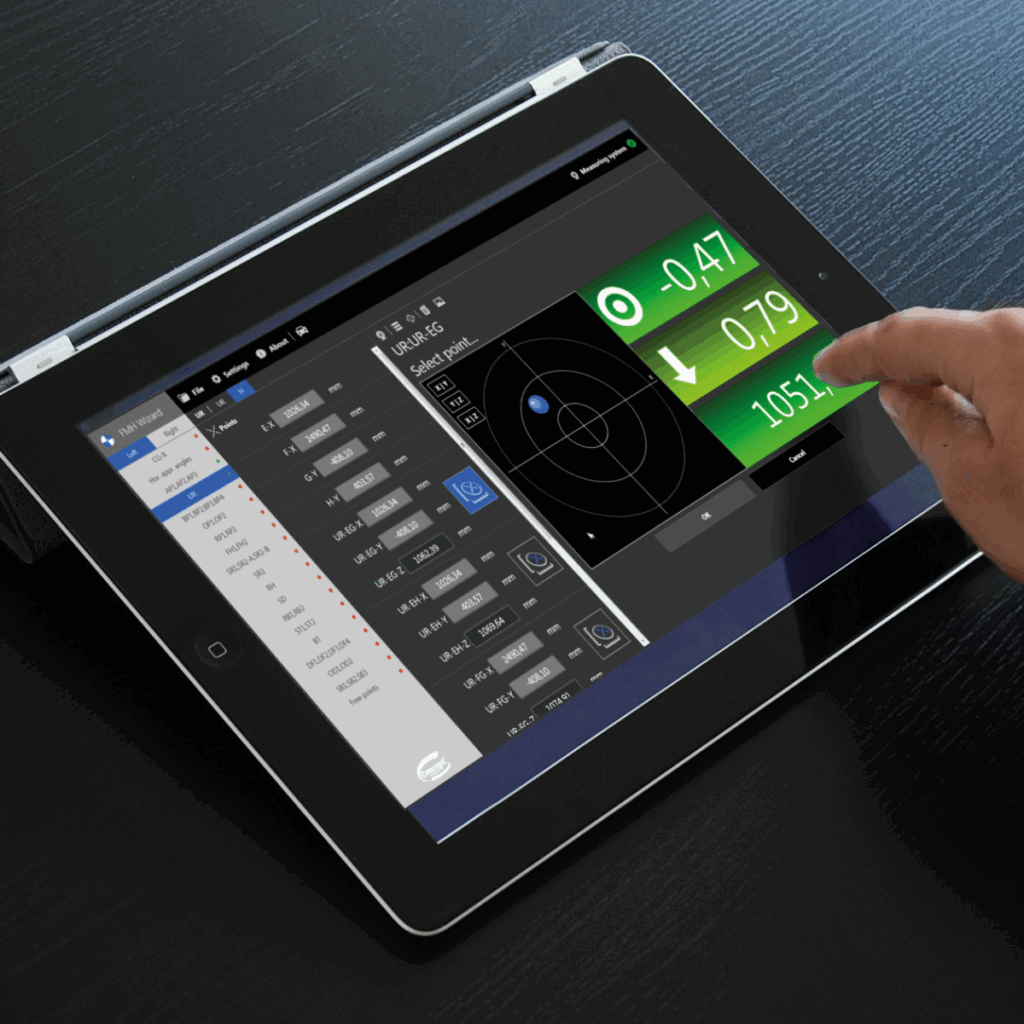

FMH Wizard – Software tool for FMVSS 201U
In combination with a 3D measuring system, the TECCON FMH Wizard supports the precise determination of test points in accordance with the FMVSS 201U test procedure.
Your advantages:
- Fast and efficient results
- Highest precision
- Repeatable and consistent measurement results
- Compliance with all relevant norms and standards
Mobile climate box
Our mobile climate box is used for preconditioning vehicles or sledges and is equipped with a powerful climate module. It offers precise and stable conditions for a wide range of test requirements.

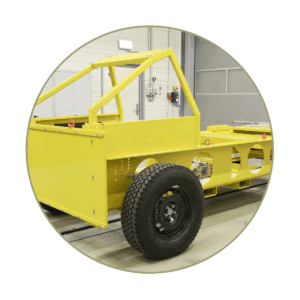

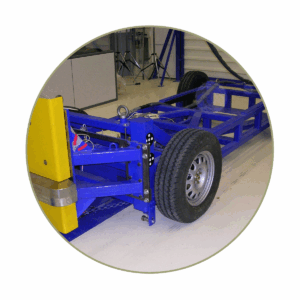

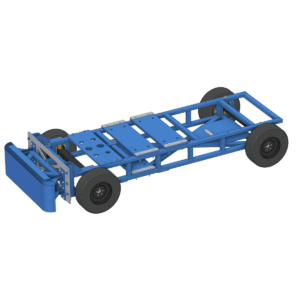

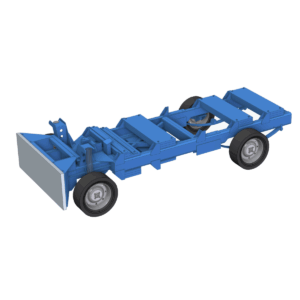

Mobile barriers
Our Moving Barriers from the Passive Safety Center are specially developed for demanding crash and safety tests. All trolleys can be optionally equipped with deformable barriers, data acquisition systems and emergency brakes.
We offer configurations in accordance with FMVSS 214 and RCAR – reliable, precise and optimal for reproducible test results.

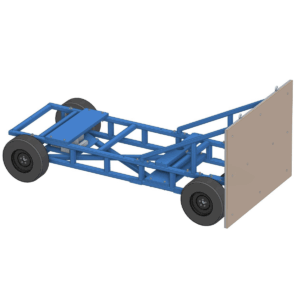

FMVSS214 configuration

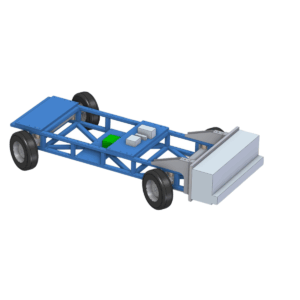

RCAR configuration
Multi barrier
- FMVSS301/214
- IIHS
Multi barrier
- KMVSS102-2
- FMVSS301R
Multi barrier
- ECE R95/R34
- RCAR
- MPDB
- AE-MDB
- NCAP MDB
Multi barrier
- Oblique Small Overlap
Low-speed crash system
Our Low Speed Crash System enables all relevant insurance tests to be carried out in accordance with the following regulations: RCAR, IIHS and GVR.
Technical data:
- Impact weight: 950 kg – 3,500 kg
- Impact speed: 5 km/h – 20 km/h (depending on configuration up to 32 km/h)
- Accuracy: ± 0.1 km/h
The system is used for insurance tests as well as for other load cases up to 32 km/h
(at 2.5 t). A particular advantage: it does not stress the high-speed crash track.

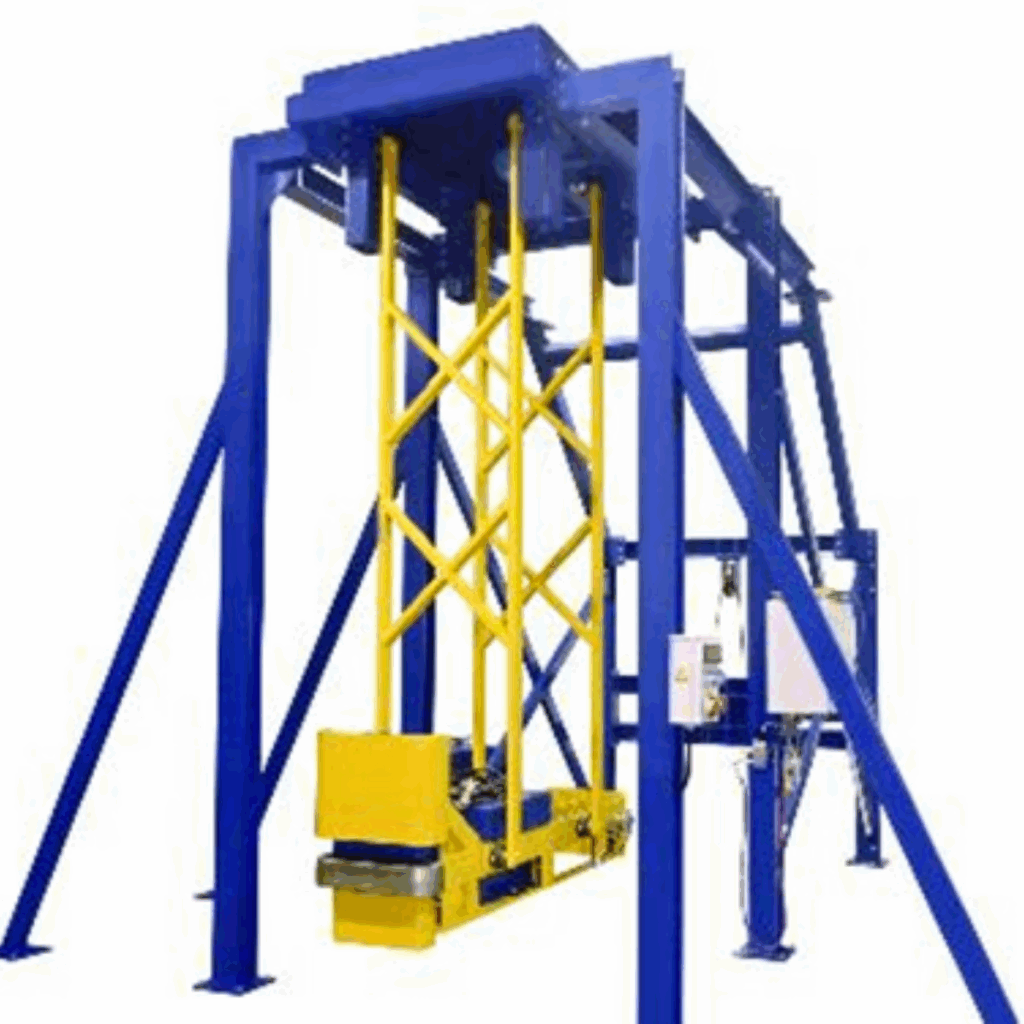

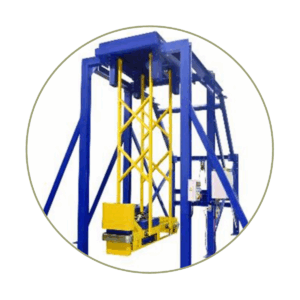

Bumper pendulum
Our fully automatic bumper pendulum offers maximum accuracy and user-friendliness for crash and impact tests. Thanks to automatic height adjustment, automatic speed calculation and automatic winding into the start position, tests are prepared quickly and efficiently. An integrated rebound protection system prevents unintentional second impacts.
The bumper pendulum combines maximum precision, repeatability and safety – ideal for reproducible and standard-compliant tests in the field of passive vehicle safety.

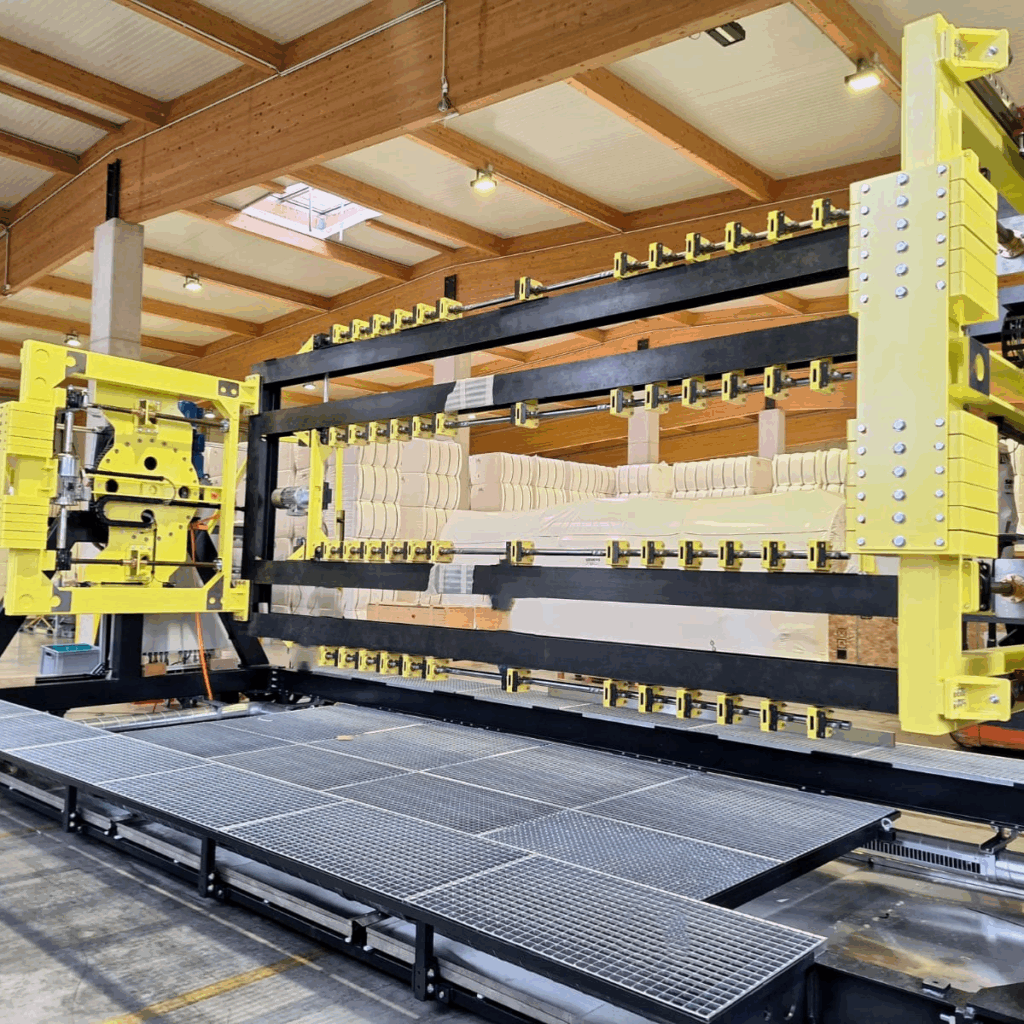

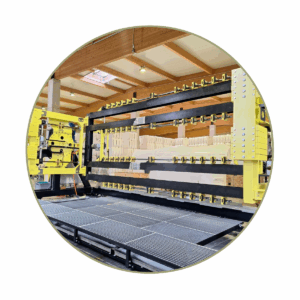

Static rollover test systems
Our static rollover test systems enable reliable and standard-compliant rollover tests for vehicles in accordance with international regulations such as FMVSS 208, FMVSS 301, FMVSS 305, ERA GLONASS, UN-R34 and GOST 34003. With semi-automatic and fully automatic positioning modes and predefined test cycles, precise and efficient execution is guaranteed. Our static rollover test systems stand for maximum safety, precise processes and flexible adaptation to different test requirements.
Head start measuring device
according to ECE R21 Annex 6
The protrusion measuring device is used to precisely determine the height of protrusions, such as switches, pull buttons or similar operating elements, within the defined reference range.
The device consists of a hemispherical measuring head and an integrated dial gauge indicator, which enables exact readings of the measured projection height. The robust design ensures stability and durability, while the intuitive handling supports user-friendly measurement.
The protrusion measuring device meets the requirements of ECE R21 Annex 6 and is ideal for standard-compliant testing of vehicle interiors for the height of switches, buttons and similar protruding controls.
Why TECCON Austria?
Our customers benefit from the highest quality, customized flexibility and fast support. With transparent pricing, a global service network and local availability of spare parts, we stand for reliability and continuity. Development and production in Austria also guarantee precision and sustainability – reasons that speak for TECCON Austria.
QUALITY
Production, pre-installation and quality control in Austria
FLEXIBILITY
Customer-specific adaptation of test benches and load cases
SPEED
Short response times for support, maintenance and calibration
TRANSPARENCY
No hidden costs – fixed price
GLOBAL NETWORK
Support guaranteed by global service network
MADE IN AUSTRIA
Development and production at the headquarters in Austria
CONTINUITY
Local availability of spare parts, maintenance contracts and calibration
Your personal contact
We offer you a single point of contact for all requirements relating to test benches in the field of passive safety. Rely on our expertise for customized test benches that guarantee maximum safety and precision.
Get in touch with us today!
Friedrich JANDL
E-mail: sales@teccon-austria.com
Telephone number: +43 (0) 3124 203 0
Your personal contact
We offer you a single point of contact for all requirements relating to test benches in the field of passive safety. Rely on our expertise for customized test benches that guarantee maximum safety and precision.
Get in touch with us today!
Friedrich JANDL
E-mail: sales@teccon-austria.com
Telephone number: +43 (0) 3124 203 0
Quality certificates & partnerships
Our high quality standards and the continuous development of our processes are reflected in our certifications. As an officially accredited test laboratory, we meet the strict requirements of Euro NCAP to comprehensively test the safety of vehicles. Our ISO 17025 certification guarantees the competence of our test laboratories and the reliability of our test results. The ISO 9001:2015 quality management system confirms our structured approach and commitment to continuous improvement. With TISAX certification, we meet the highest standards for information security and the protection of sensitive data in the automotive industry. With our Passive Safety Center, we are a partner laboratory of ALEE – Alliance des laboratoires d’essai européenne GmbH and part of a strong network for vehicle safety in Europe
